Laser Welding Machine-LITHIUM BATTERY-Shenzhen YanSai-Shenzhen YanSai

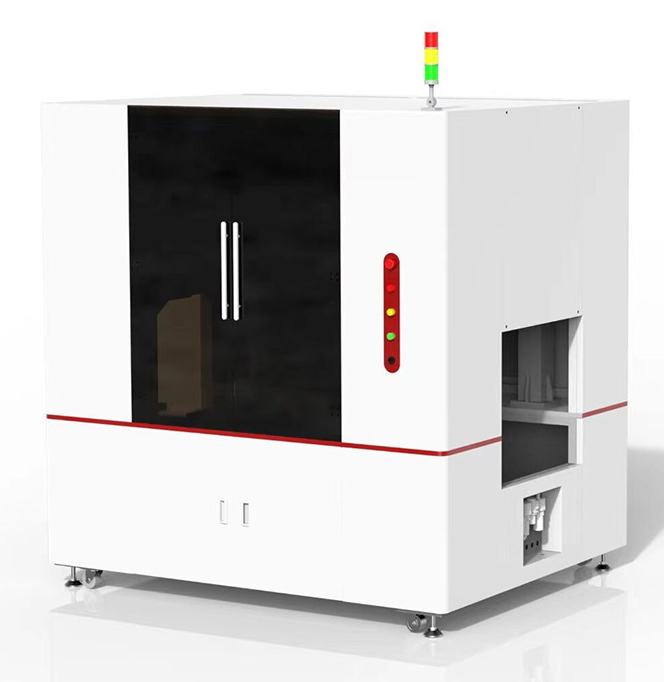

Laser Welding Machine

This industrial-grade laser welding system delivers exceptional precision and reliability for battery manufacturing and electrical component assembly. Engineered for seamless integration into automated production lines, it features a robust 6kW fiber laser source and dual-mode welding capabilities to handle diverse conductive materials with high accuracy.

Device Details Video

1. Machine external dimensions specifications: (L) 2100mm × (W) 1700mm × (H) 2185mm (excluding signal tower); (L) 2100mm × (W) 1700mm × (H) 2507mm (including signal tower).
2. Weldable material thickness: 0.5mm-2.0mm;
3. Effective stroke range: (X-axis 1000mm) × (Y-axis 600mm) × (Stroke 400mm);
4. Welding speed: 60mm/s (adjustable)
5. Laser type: Continuous
6. Laser power: 6KW (adjustable)
7. Laser working medium: Fiber
8. Laser lifespan: ≥5 years
9. Welding materials: Aluminum busbars, copper strips, nickel strips
10. Welding can be done in continuous welding / pulse spot welding modes
11. Weld penetration depth: Contact surface melting depth 0.5-1mm adjustable
12. Total power: ≤20KW
